Lab Planetary Ball Mill 100ml Ceramic Alumina Grinding Jar Polished

  • 1
  • 2

Place of Origin : Hunan, China

Model Number : 50ML-3L

Brand Name : Kingda

Packaging Details : PE Foam + Cartons / Wooden cases

Price : Negotiable

MOQ : 1 PC

Delivery Time : 3-7 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000 pcs / Month

Type : Ceramic Parts

Application : Industrial Ceramic

Material : Alumina Ceramic

Color : White

Shape : round

Density : 3.7g/cm3

Usage : Grinding,dispersing and polishing

Compress Strength : 2000 MPa

Size : 50ml,100ml,250ml,500ml,1000ml,2000ml

Raw material : 99% Al2O3 oxide

Feature : Planetary Ball Mill use 100ml Ceramic Alumina Grinding Jar

Product name : Planetary Ball Mill 100ml Ceramic Alumina Grinding Jar w/ Ball Media

Contact Now

Lab Planetary Ball Mill 100ml Ceramic Alumina Grinding Jar w/ Ball Media

Product Description

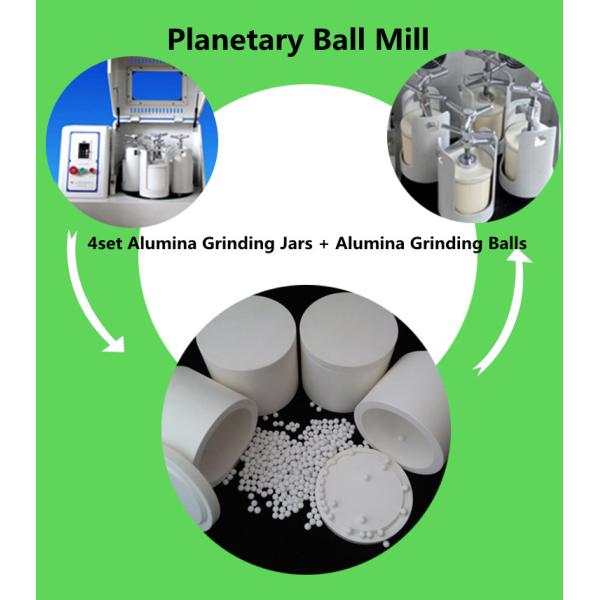

Polished alumina ceramic jars. These jars are used whenever small quantity of samples need to be grinded. They are extensively applied to in the fields of Paint, Ink, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed alumina ceramic grinding balls.

Lab Planetary Ball Mill 100ml Ceramic Alumina Grinding Jar Polished

Dimesion (offer OEM & ODM Service)
Jar Volume OD (mm) ID (mm) Total Height (mm)
50ml 55 38 67
100ml 65 50 75
250ml 92 74 88
500ml 100 84 118
1000ml 128 108 150
1.5L 132 112 175
2.0L 158 138 162
3.0L 158 138 220
Note: 1. Jar size of each patch will control tolerance ±3mm. One set includes: jar + lid + sealing gasket.
2. We can customize different volume according to client's request.

Gringing Jar Ball Configurations

Grinding Jar Volume
100ml
250ml
500ml
1000ml
Compatible Ball Weight
66g
165g
330g
660g
Φ5mm grinding balls (0.25 g/pc)
106 pcs
300 pcs
Φ10mm grinding balls (1.99 g/pc)
20 pcs
76 pcs
50 pcs
100 pcs
Φ15mm grinding balls (6.72 g/pc)
4 pcs
30 pcs
59 pcs
Φ20mm grinding balls (15.92 g/pc)
3 pcs
Grinding Jar Volume
5 pcs

These values are just clues: the number of balls should be determined experimentally if necessary.

Features:
1. High purity: Al2O3> 99%, good chemical corrosion resistance.
2. Good temperature endurance, long-term use at 1600 °C, 1800 °C short-term.
3. Good rapid thermal shock resistance, not easy to burst.
4. Slip Casting with high density.
Lab Planetary Ball Mill 100ml Ceramic Alumina Grinding Jar Polished

Application Fields:

Lab Planetary Ball Mill 100ml Ceramic Alumina Grinding Jar Polished

Related Products

Lab Planetary Ball Mill 100ml Ceramic Alumina Grinding Jar Polished

FAQ

1.What's product your company supply?

A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball, ball mill grinding jar, tungsten carbide ball, zirconium powder,ceramic structual elements etc.

2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.

3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .

4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.

5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.

6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.

L/C at sight,Western Union, paypal,Visa,etc
