YSZ Ball Mill Jar Wear Resistant Zirconium For Planetary Ball Mill

Name: YSZ Ball Mill Jar Wear Resistant Zirconium For Planetary Ball Mill
Brand: Kingda
Price: 1 USD

Wholesale YSZ Ball Mill Jar Wear Resistant Zirconium For Planetary Ball Mill from china suppliers

Place of Origin : Hunan, China

Model Number : 50ML-3L

Brand Name : Kingda

Packaging Details : PE Foam + Cartons / Wooden cases

Supply Ability : 5000 pcs / Month

Price : Negotiable

Type : Ceramic Parts

Application : Industrial Ceramic

Material : Zirconia Ceramic

Capacity : 50ml,100ml,250ml,500ml,1L,2L,3L

Materials : high purity zirconia

Grinding mode : Dry grinding,wet grinding

structural style : Vertical

shape : cylindrical

Hardness : >92HRA

Feature : Good insulation and high temperature resistance

Finish : highly polished

applied range : powder grinding

product name : 50cc High Performance Powder Jar Zro2 Boat Ceramic Container With Lid

Port : changsha, shanghai,guangzhou,shenzhen

MOQ : 1 PC

Delivery Time : 3-7 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Contact Now

Zirconium Porcelain Planetary Ball Mill 50cc High Performance Powder Jar Zro2 Boat Ceramic Container With Lid

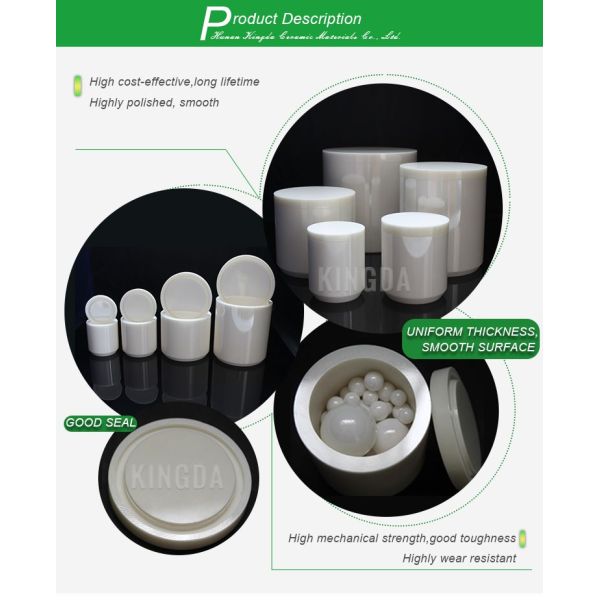

Product Description

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The abrasive pots are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes abrasive pot, jar lid, rubber sealing gasket and different sizes of mixed zirconium oxide grinding balls.

YSZ Ball Mill Jar Wear Resistant Zirconium For Planetary Ball Mill

Dimesion (offer OEM & ODM Service)

Jar Volume	OD (mm)	ID (mm)	Total Height (mm)
50ml	55	38	67
100ml	65	50	75
250ml	92	74	88
500ml	100	84	118
1000ml	128	108	148
2.0L	158	138	162
3.0L	158	138	220

Note: Jar size of each patch will control tolerance ±2mm. One set includes: jar + lid + sealing gasket.

Choice of Grinding Jars & Grinding Balls

In order to prevent excessive abrasion, the hardness of the abrasive pots used and of the grinding balls must be higher than that of the material used. Normally, abrasive pots and grinding balls of the same material should be chosen.

Features:

1. High specific gravity, high efficiency
2. Highly wear resistant to acid and solvents
3. High cost-effective, low wear and long lifetime
4. Highly polished, smooth, easy to clean, low abrasion to the equipment
5. High mechanical strength, good toughness, impact resistance, no broken beads
6. Mainly used for lab planetary ball mill machines

YSZ Ball Mill Jar Wear Resistant Zirconium For Planetary Ball Mill

Application Fields

YSZ Ball Mill Jar

Ball Mill Jar Wear Resistant

YSZ Ball Mill Jar Wear Resistant Zirconium For Planetary Ball Mill Images
