Yttrium Stabilized Zirconia Ceramic Milling Tank or Grinding Jars for Planetary Ball Mill Machine
- Description
KINGDA highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding jars are extensively applied on in the fields of paint, ink, coating, geology, metallurgy, electronics, construction material, ceramics, chemical engineering, light Industry, medicine, environmental protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket.
We can customize various types of vacuum jar according to customer’s needs.
Composition
% | Specific Gravity g/cm3 | Bulk Density kg/L | Hardness Mho’s |
ZrO2 : 95±0.2
Y2O3 : 5±0.2 | ≥6.02 | ≥3.7 | 9 |

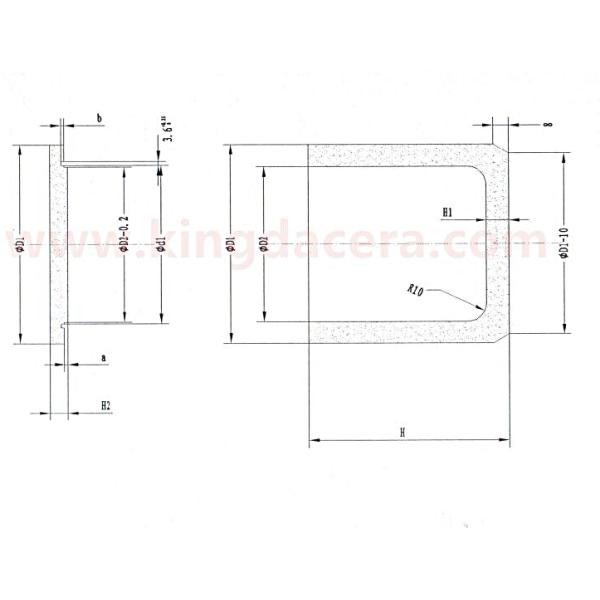

| Volume of Jar | Inner Diameter
(mm) | External Diameter
(mm) | Inner Depth (mm) | Height of without lid (mm) | Total Height
(mm) | Weight (g) |
| 50ml | 38 | 55 | 52 | 60 | 67 | 610 |
| 100ml | 50 | 65 | 58 | 66 | 75 | 835 |
| 250ml | 74 | 92 | 70 | 78 | 88 | 1760 |
| 500ml | 84 | 100 | 100 | 108 | 118 | 2300 |
| 1L | 108 | 128 | 128 | 138 | 150 | 4780 |
| 2L | 138 | 158 | 140 | 150 | 162 | 6750 |
| 3L | 138 | 158 | 198 | 208 | 220 | 8400 |
| Remarks:1. Size deviation within ±2mm； 2. Weight deviation within ±0.2KG |
Zirconia grinding jars are high-quality grinding jars used for grinding and milling materials in various industries, including ceramics, electronics, metallurgy, and chemical engineering. Zirconia grinding jars are known for their high wear resistance, chemical resistance, and high density, which makes them an ideal choice for grinding highly abrasive and hard materials.
Zirconia grinding jars are typically made of high-quality zirconium oxide, which is a ceramic material with a high melting point and excellent thermal shock resistance. The jars come in various sizes and shapes, including cylindrical, conical, and round-bottomed, to suit different grinding applications and equipment.
Zirconia grinding jars are commonly used in planetary ball mills, where they are rotated around their own axis in a planetary motion while simultaneously rotating around a central axis. This motion helps to achieve a uniform grinding and milling of the materials inside the jar. The grinding jars are also compatible with other types of mills, such as roller mills, vibratory mills, and attritor mills.
Zirconia grinding jars can be used for grinding a wide range of materials, including ceramics, minerals, ores, chemicals, and electronic materials. They are also suitable for grinding biological tissues, such as bones and teeth, due to their inertness and biocompatibility.
Overall, zirconia grinding jars are a high-quality and reliable option for grinding and milling materials in various industries, offering excellent wear resistance, chemical resistance, and thermal shock resistance.
Zirconia Milling Jar and Tank, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. They are extensively applied to in the field of Paint, Ink, Geology, Metallurgy,Electronics, Pigment, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid and silicon sealing gaskets.
- FAQ
1. What's product your company supply?
We can supply yttria zirconia oxide bead, cerium stabilized zirconia bead, zirconium silicate bead, 92% high alumina ball, agate ball, zirconia toughened alumina beads, ball mill grinding jar with different materials, etc.
2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity.
3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost.
4. Q: What is your payment term?
A: T/T 30% Deposit, balance against copy of B/L. L/C at sight, Western Union, pay pal, Visa, etc.
|
|
Yttrium Stabilized Zirconia Ceramic Milling Tank or Grinding Jars for Planetary Ball Mill Machine Images
|
